ASTM A403 WP 904L Buttweld Pipe Fittings

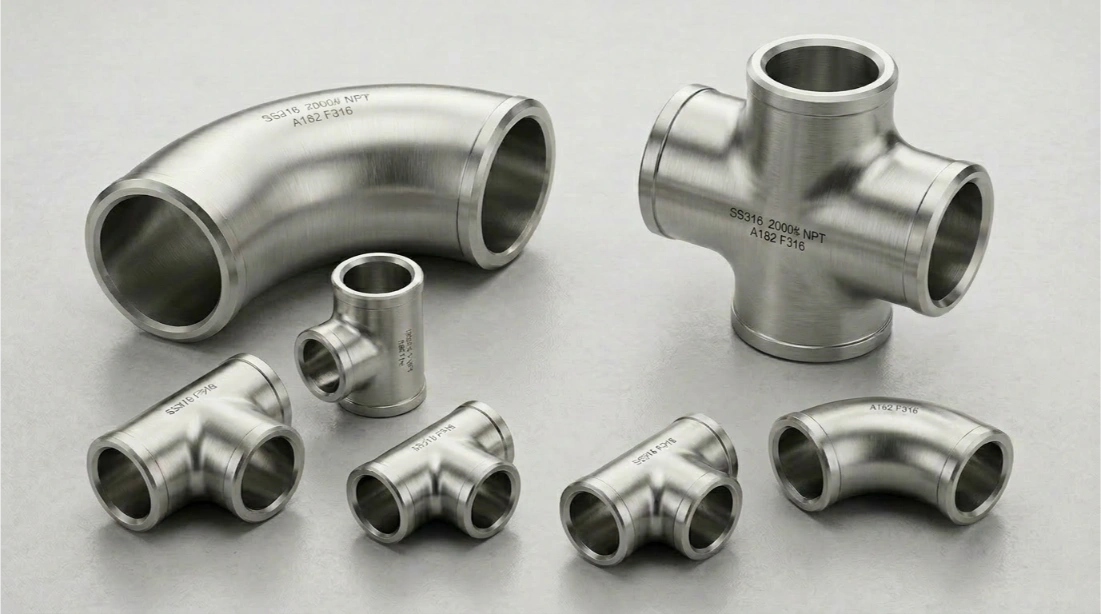

ASTM A403 WP 904L Stainless Steel Buttweld Pipe Fittings - Corrosion Resistant Elbows, Tees, Reducers

Petrofit Alloys & Engineering LLP is a specialised ASTM A403 WP 904L Buttweld Pipe Fittings manufacturers in India, supplying high‑alloy stainless steel fittings for corrosive process environments. We manufacture and supply 904L Stainless Steel Buttweld Fittings such as elbows, tees, reducers, caps and stub ends for applications where standard grades like 304/316 may be borderline due to chloride exposure, acidic media or aggressive cleaning chemicals.

Buyers choose Petrofit when they need more than a catalogue item—when traceability, documentation and consistent dimensional control are essential for EPC approval and site acceptance. Our goal is to deliver ASTM A403 WP 904L Buttweld Pipe Fittings with reliable quality, practical lead times, and a documentation pack that supports inspection and project compliance.

Product Overview – 904L Stainless Steel Buttweld Fittings

904L is a high‑alloy austenitic stainless steel designed to handle demanding corrosion conditions, particularly where acids and chlorides can create pitting and crevice corrosion risks. 904L Stainless Steel Buttweld Fittings are commonly specified in sulphuric acid related services, chemical processing, pollution control equipment and certain seawater‑exposed utilities where enhanced resistance beyond 316L is needed. In engineering terms, ASTM A403 WP 904L Buttweld Pipe Fittings provide a practical "step‑up" option: higher corrosion margin than standard stainless grades, while still being more familiar to fabricate and qualify than many nickel alloys.

From a procurement perspective, 904L is typically used selectively—installed in the most corrosion‑sensitive circuits while other grades are used elsewhere to manage project cost. Where chloride severity is moderate, many projects compare 904L against 316L; where chloride severity is high, designers may consider super austenitic options such as href="smo254-uns-s31254-buttweld-pipe-fittings.php">SMO254 Buttweld Pipe Fittings. For higher strength in seawater systems, duplex grades like ASTM A182 F51 Buttweld Pipe Fittings may also be evaluated depending on design pressure and line class.

Specifications of ASTM A403 WP 904L Buttweld Fittings

General Specifications

Item	Details
Material standard	ASTM A403 / ASME SA403
Grade	WP 904L
Common designation	904L
Product description	ASTM A403 WP 904L Buttweld Pipe Fittings / 904L Stainless Steel Buttweld Fittings
Dimensional standard	ASME/ANSI B16.9 (buttweld fittings); ASME B16.28 / MSS‑SP‑43 as applicable
Typical forms	Elbows (LR/SR), tees, reducers (concentric/eccentric), caps, stub ends; specials as per drawings
Manufacturing types	Seamless, welded or fabricated

Size and Thickness Range

Item	Details
Nominal size	Supplied across small‑bore to large‑bore ranges based on project requirement
Wall thickness / schedule	Common stainless schedules such as Sch 5S, 10S, 40S, 80S, 160S, XXS
End preparation	Bevelled ends suitable for welding, supplied as per ASME B16.9 requirements

Bending Radius Options

Item	Details
Standard radii	Standard LR/SR elbow radii as per ASME B16.9
Custom radii	Custom radii and special bends can be supplied to match project drawings and skid layouts

These tables are intended to support specification and RFQ preparation. For accurate lead time and manufacturing route confirmation for 904L Stainless Steel Buttweld Fittings, share your MTO with size, schedule and fitting list so we can confirm seamless vs fabricated supply.

Applications of 904L Stainless Steel Buttweld Fittings

904L Stainless Steel Buttweld Fittings are used where corrosion exposure is higher than typical stainless duty, especially in acidic or chloride‑bearing services. Common applications include chemical processing lines, scrubber and pollution control circuits, acid condensate handling, fertilizer and phosphate-related services, and utilities exposed to aggressive cleaning chemicals. ASTM A403 WP 904L Buttweld Pipe Fittings are also selected in systems where designers want a higher corrosion margin than 316L without moving to nickel alloys, particularly where downtime or contamination risk is costly.

Key Benefits of ASTM A403 WP 904L Buttweld Pipe Fittings

The main advantage of ASTM A403 WP 904L Buttweld Pipe Fittings is enhanced corrosion resistance compared with standard austenitic stainless steels in many acid and chloride conditions. In practical terms, 904L Stainless Steel Buttweld Fittings help reduce risk of pitting and crevice corrosion in services that can be unpredictable across operating cycles, cleaning regimes and temperature changes.

For procurement teams, using 904L Stainless Steel Buttweld Fittings selectively in corrosion‑sensitive circuits can improve lifecycle cost by reducing replacements and shutdown repairs while keeping the rest of the piping system on more economical grades where conditions permit.

Equivalent Grades

Standard / System	Equivalent / Reference
ASTM / ASME	ASTM A403 / ASME SA403 WP 904L
UNS	N08904
EN / Werkstoff	1.4539
JIS	SUS904L
DIN designation	X1NiCrMoCu25‑20‑5

These equivalences help inspection teams verify certificates and markings for ASTM A403 WP 904L Buttweld Pipe Fittings in multi‑country procurement and export projects.

Industries We Serve

Petrofit supplies ASTM A403 WP 904L Buttweld Pipe Fittings and 904L Stainless Steel Buttweld Fittings to industries where corrosion control is directly linked to safety, uptime and product integrity. Chemical processing plants use 904L in circuits exposed to acidic media, aggressive cleaning regimes and variable process conditions that can attack standard stainless steels. Fertilizer and related process industries frequently specify 904L Stainless Steel Buttweld Fittings in corrosion‑sensitive lines, scrubbers and transfer systems where reliability matters more than initial material cost.

Pollution control systems and scrubber units use ASTM A403 WP 904L Buttweld Pipe Fittings in acidic condensate handling and chloride‑bearing services where pitting and crevice corrosion can be a persistent risk. In some marine‑adjacent industrial facilities, 904L is selected for utilities exposed to saline atmospheres or chloride‑rich water, especially when designers want improved corrosion margin while remaining within the stainless steel family.

Why Choose Petrofit Alloys

Petrofit Alloys & Engineering LLP is structured to support project procurement, not just supply. For 904L Stainless Steel Buttweld Fittings, we focus on correct material identification, consistent dimensional control and inspection‑ready documentation because these are the factors that drive fast acceptance on site. As an ASTM A403 WP 904L Buttweld Pipe Fittings manufacturers in India, we support traceable sourcing and controlled processing, coordinating manufacturing routes suitable to the size and schedule requested.

We also support mixed‑material packages—common in chemical and petrochemical plants—so clients can reduce vendor count, streamline document review and improve delivery coordination. For export deliveries, we understand the need for proper packing, marking and certification, and we can coordinate third‑party inspection and documentation formats to match EPC and end‑user procedures.

FAQs

Q1. When should 904L be selected instead of 316L?

Choose 904L Stainless Steel Buttweld Fittings when corrosion risk in acids or chlorides is higher and you need a greater safety margin than 316L typically provides for the service conditions.

Q2. Is 904L suitable for seawater applications?

904L performs better than 316L in many chloride environments, but for full seawater or very high chloride duties, designers often evaluate duplex or 6Mo grades depending on conditions.

Q3. What documents are supplied with ASTM A403 WP 904L fittings?

Supply typically includes EN 10204 3.1 MTCs with heat traceability; additional NDT and third-party inspection documents can be provided as per project requirements.

Q4. What information should I include in an RFQ for 904L buttweld fittings?

Share fitting type, size, schedule, quantity, service media and any special inspection/certification requirements for your ASTM A403 WP 904L Buttweld Pipe Fittings order.

Q5. Can Petrofit supply 904L fittings along with other grades in one order?

Yes. Petrofit can consolidate multiple grades across your buttweld fittings package to reduce vendor count and streamline documentation.

Quality Assurance

Every batch of ASTM A403 WP 904L Buttweld Pipe Fittings is supplied with controlled inspection and full traceability. Material identification is verified, and fittings are checked for dimensions as per the relevant standards and drawings. Where specified in the project ITP, Petrofit supports NDT such as radiography for welded fittings, dye penetrant testing, ultrasonic testing and other checks aligned with project requirements.

Documentation typically includes EN 10204 3.1 certification, and third-party inspection can be arranged on request. This ensures 904L Stainless Steel Buttweld Fittings are delivered in a condition suitable for acceptance by EPC contractors, inspectors and end users in critical service applications.

Request a Quote

If you are looking for ASTM A403 WP 904L Buttweld Pipe Fittings manufacturers in India for 904L Stainless Steel Buttweld Fittings, share your sizes, schedules, fitting types, quantities and inspection requirements. Petrofit Alloys will review your specification and provide a technically compliant, competitively priced quotation with clear delivery timelines.
